Plastering Boxes and Drywall Flat Boxes: Types, Sizes and Uses

Someone asks for a “plastering box”. Do they mean a tool that lays tape, coats a flat joint, or feeds an internal corner tool? It matters which stage they mean.

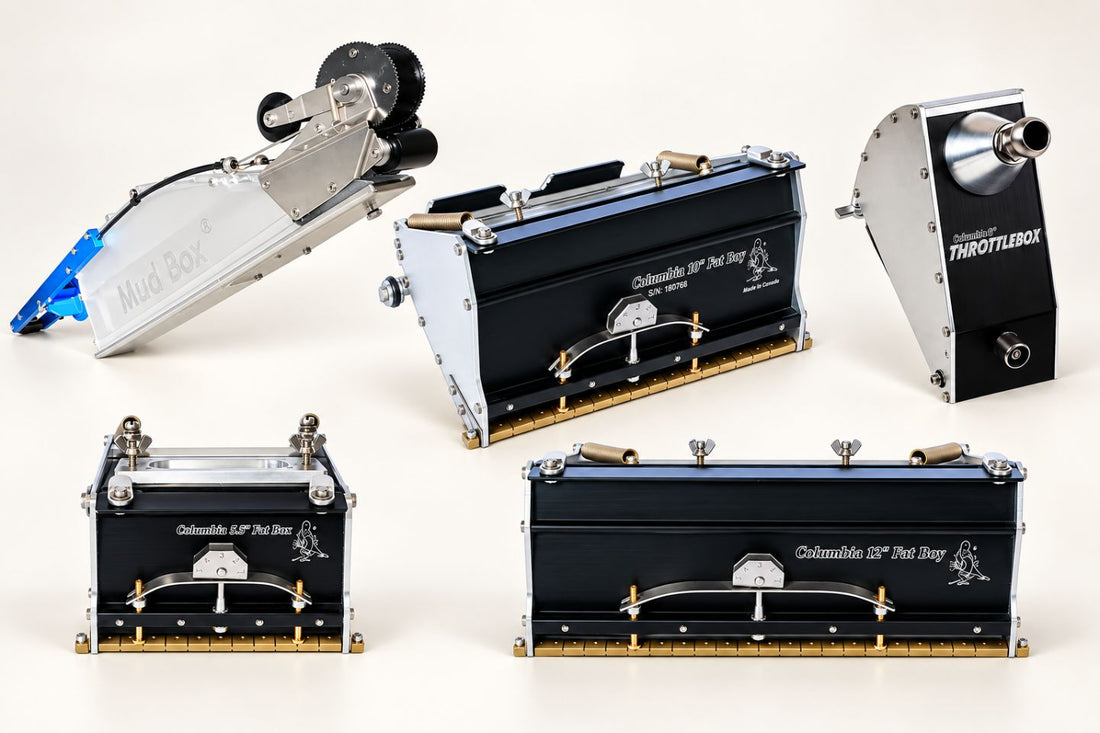

A flat box is one type of plastering box. It coats an already taped flat joint. A mud box lays tape and compound. A corner box feeds compound to a corner tool. Identify the job before choosing the box size.

Plastering box vs drywall flat box: what is the difference?

“Plastering box” is a loose trade and search term. It may refer to several tools in a taping and finishing setup:

• Mud box or hand taper: Feeds paper tape and compound onto flat joints and internal corners. Pro Plaster’s TapePro Mud Box Pro is one example. You still need to embed the tape and finish the joint.

• Flat box or finishing box: Runs over a taped flat or butt joint to apply and feather a coat of compound. This is the box most people mean when they ask about 7, 10 or 12-inch box sizes.

• Corner or angle box: Supplies compound to an applicator for internal corners. Its job and attachments differ from those of a flat box.

A drywall flat box is therefore a finishing tool, not a substitute for an automatic taper. You can tape by hand and still use flat boxes for the following coats. For the order of work and the wider kit, see our Automatic Taping Tools Buyer’s Guide for Plasterers.

Other common automatic tools include tapers, corner rollers and finishers, and loading pumps. Each handles a different step.  To see the taping stage, watch the following video:

How does a flat box finish a plasterboard joint?

Fill the box with joint compound and attach a flat box handle. As you move it along the taped joint, pressure on the back plate pushes compound through the front opening. The adjustable blade controls how much compound is applied, helping create an even coat with feathered edges. The crown setting can be adjusted depending on the joint and stage of finishing.

Keep the wheels and blade seated against the plasterboard. Some flat box handles have a brake that holds the box angle as you position it, then releases for the run, helping you maintain control during application. At the end, lift the flat box from the wall with a smooth sweep to avoid a lump.

The crown dial changes how much compound the blade leaves. On many models, a higher number means a flatter crown and less compound. Check your model: blade condition and compound consistency also affect the result.

What are the benefits of using a drywall flat box?

On repeated joints, a flat box lays a consistent coat and feathers both edges in one pass. That can cut knife work on long runs. Once the mix, crown and pressure are set, the next joint is easier to match. You still need clean starts and stops; a small repair may be faster by hand.

Watch the Columbia FatBoy boxes in action to see a flat box being run on a job.

Can you use flat boxes on walls and ceilings?

Yes. The same box can coat taped flat joints on both. An extendable handle helps you reach a ceiling and switch back to walls. Keep the wheels and blade in contact through the run, and consider the weight of a full high-capacity box overhead. Corners still need the appropriate corner tools.

Where does the flat box fit in the stages of plasterboard finishing?

For jointing plasterboard, the usual sequence is tape coat, second coat, finish coat, then sanding after the compound dries. The tape coat embeds the tape. A flat box is used on the later flat-joint coats to cover the tape, build the joint and feather it wider. Some crews also use a box on an earlier fill pass, depending on the system and joint. Follow the compound maker’s coat and drying instructions; a flat box does not make a finish compound suitable for the tape coat.

Which flat box size suits the job?

Flat boxes come in various sizes, but width is not a fixed rule for the first or final coat. Ask two questions: How wide does this pass need to be? and How much room do I have to run the box cleanly?

5.5 to 7 inches: tight work and narrow first passes

On a short joint, check whether both wheels can sit on the board and you have space to sweep the box off at the end. The Columbia 5.5-inch flat box is worth considering where a wider box is hard to place.

See that narrow model in Pro Plaster’s Columbia 5.5-inch flat box video:

8 inches: a controlled first box

An 8-inch box gives you room to work around openings while covering more than a 7-inch box. If you plan to buy two boxes, think about the width of the next pass too. An 8/12-inch pair gives you a clear step up in coverage.

10 inches: a flexible middle width

A 10-inch box can be your narrower box on open work. You do not need to buy an 8-inch and a 10-inch just to progress through the coats. Choose the one you can run cleanly on the joints you see most often.

12 inches and wider: spreading the coat

The wider pass helps blend a joint, particularly where a butt joint sits proud of the board. First, check the previous coat with a straightedge. A wider box will spread the next coat, but it will not flatten a heavy ridge left underneath.

Recessed joint or butt joint: what changes?

A recessed factory edge gives you space to fill before you spread the coat wider. A butt joint has no recess, so the build-up sits proud of the board. The next coats need a wider feather to make that change less obvious.

“First coat with a small box, last coat with a large one” is only a guide. A 10-inch box may work across more than one pass on a recessed joint. A butt joint may need the 12-inch box and more care with the crown. Check the shape under a work light.

Is a high-top box better than a standard flat box?

A high-top or high-capacity box carries more compound, so you can run farther between fills. The trade-off is more weight and effort when full, especially overhead. High-top describes capacity, not a special coat or joint type.

Compare capacity by model. Check how the pressure plate opens for cleaning and whether blades, seals and wheels are easy to source. Fewer fills may not save time on short runs.

Which flat box setup should you buy first?

Think about the joints you run most often. If your work includes small rooms, openings and frequent stops, an 8/12-inch pair gives the boxes distinct jobs: the 8-inch is easier to place on the narrower pass, while the 12-inch spreads the next coat. If most runs are long and open, a 10/12-inch pair may suit you better. The 10-inch covers more on the earlier pass, though it gives you less room to work in tight spots.

Pro Plaster offers a TapePro 8/12-inch box and handle bundle with a Speed Pump. Its Columbia FatBoy 8/12-inch bundle lists the loading pump and filler nozzle separately. Check the current bundle contents before comparing prices.

For a look at the loading equipment, see The Columbia Box Filler.

What if the flat box leaves a poor finish?

If you have used a drywall flat box and the coat looks wrong, change one thing at a time:

• Heavy centre: Check the crown setting, compound consistency and how hard you push on the pressure plate.

• Lines at the edges: Clean and inspect the blade and wheels. Make sure both wheels stay on the board through the run.

• Stops and lumps: Check where you start and lift the box. Leave enough room to sweep it off the joint.

• Uneven feed: Check the fill level, the compound and whether dried material is blocking the outlet.

Test each adjustment on a short joint. Another box size will not fix a damaged blade or a box that runs out of square.

For most crews, the best box setup is the one that matches the joints you finish each week. Pick the tool for the stage, the width for the pass, and the capacity for the length of the run.
