- Setting

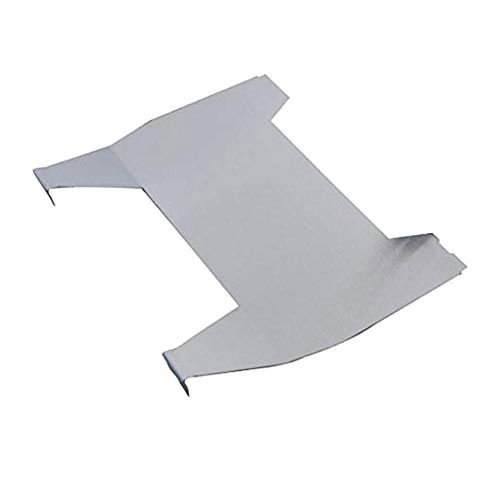

The RP-200 Reducer Plate is designed to be fitted to a Tapepro 200mm (8″) Flat box, to reduce the finished width to 140mm (5.5″).
This is great for filling the recess after taping and provides a clean machine finish, feathered at the shoulder of the recess.
It is easily cleaned and can be used with chemical setting compounds.
* The Reducer Plate and the 200mm Flat Box is sold separately
- Tape in flat joints using a Mud Box
- Flatten tape with a joint knife (same speed as Mud Box)
- Fill and finish recess with Flat Box and Reducer Plate (same speed as Mud Box)
- When dry, coat with 200mm Flat Box
- When dry, finish with 300mm Flat Box
- LASER cut from durable stainless steel sheet metal
- Easy fitment to Tapepro Flat Boxes
Not permanent – easily removed
Usage
Fitted to a Flat box it reduces the finished width to 140mm.

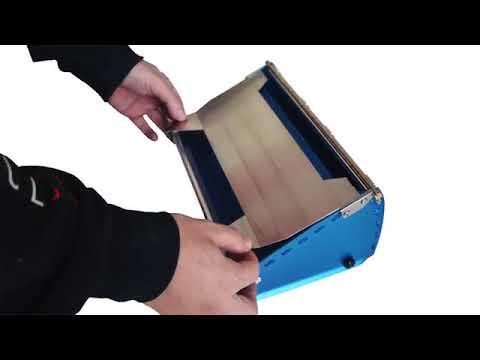

To fit the reducer plate:
Slide the plate under the skids until the front edge touches the brass blade holder.
Push the legs down to lock in behind the wheel axle.
It works well in the following system:
- Tape in flat joints using a Mud Box or other taping tool
- Flatten tape with a joint knife
- Fill and finish the recess with 200mm Flat Box and Reducer plate
- When dry, coat with 200mm Flat Box
- When dry, finish with 300mm Flat Box
Warranty
3 year manufacturer's warranty
